ME300 Series

SKU: Delta : ME300 Categories:
Applications :
  • Fans & pumps, Conveyors, blowing machines, packing machines, wood working machines

Specifications :

  • Supports IM / IPM /SPM motors and VF / SVC control
  • Dual rating design:
    - Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds
    -  Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds
  •  Up to 200% rated starting torque at 0.5 Hz.
  • 2 set of motor parameter for multi-motor control
  • Supports high speed pulse and PWM signal input
  • Buil-in single / maulti-pump function
  • Bilt-in braking choppers for the entire series
  • Optional EMC filter for 1-phase 230V(C2), 3-phase 460V(C3) models
  • Optional Safe Torque Off (SIL2/PLd) model
  • 100% PCB coating for circuit(IEC 60721-3-3 class 3C3) for harsh environment

Powered by Froala Editor

TYPE : ME300 Series
FORM : Delta (Brand Taiwan)

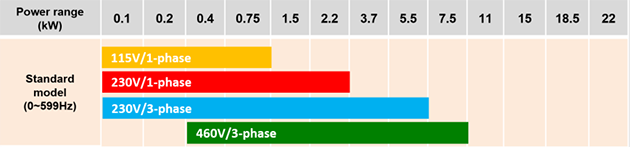

APPLICABLE MOTOR (KW) : 0.1Kw-7.5Kw
APPLICABLE MOTOR (HP) : 0/4Hp-10Hp
OUTPUT VOLTAGE : 220V. 1Ph / 220V. 3Ph / 380V. 3ph
DELTA_IA-MDS_ME300_C_EN_20200818_Web.pdf
×
