MS300 Series

SKU: Delta : MS300 Categories:
Applications :
  • Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors
Specifications:
  • Supports Open loop control of IM and PM motors

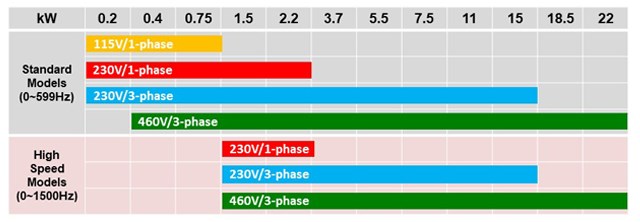

  • Output frequency:
    Standard models: 0 to 599 Hz
    High speed models: 0 to 1500 Hz (V/f Control)
  • Dual rating design:
    120% for 60 seconds for Normal Duty (ND)
    150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control,built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
  • One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT

Powered by Froala Editor

TYPE : MS300 Series
FORM : Delta (Brand Taiwan)
APPLICABLE MOTOR (KW) : 0.2Kw-22Kw
APPLICABLE MOTOR (HP) : 1/4HP-30HP
OUTPUT VOLTAGE : 220V. 1Ph / 220V. 3Ph / 380V. 3Ph
DELTA_IA-MDS_MS300_C_EN_20210201_web.pdf
×
