Inverter INVT GD10 -Master Drive

SKU: INVT INVERTER GD10 Categories:

ตัวแทนจำหน่าย INVT Inverter GD10 Series

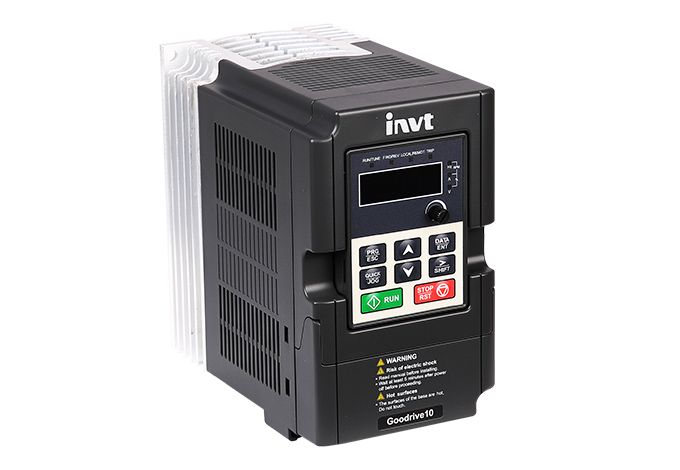

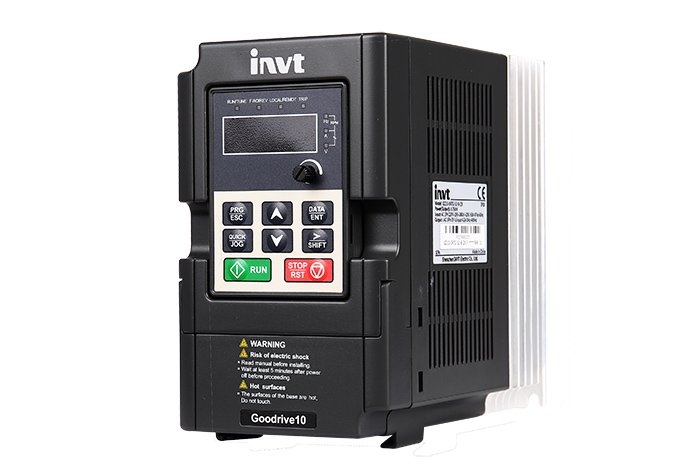

INVT GD10 INVERTER

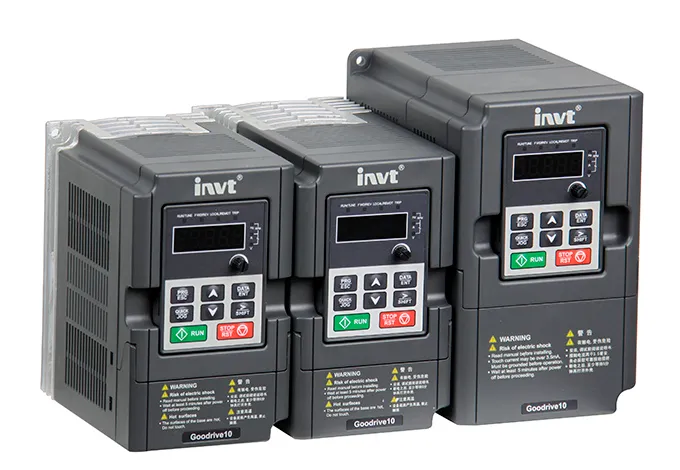

Goodrive10 series mini inverter

INVT GD10 mini economical vfd drives are designed for common applications of small power OEM market, with various functions of PID,

multistage speed, DC braking, Modbus communication and others.

Its smaller size can further reduce the installation space (the size is about 15% smaller than similar products).



Low Voltage Drive - INVT Goodrive Series

อินเวอร์เตอร์จาก INVT ที่มีประสิทธิภาพยอดเยี่ยม ฟังก์ชันครบ ใช้งานง่าย และเชื่อถือได้

จำหน่ายพร้อมติดตั้ง / Set Parameter / ออกแบบตู้ควบคุมอินเวอร์เตอร์ จัดส่งฟรีในเขตกรุงเทพฯ และปริมณฑล



Feature :

  • SVPWM control
  • Compact design, less installation space
  • Built-in PID with 16-step speed control
  • Standard potentiometer and external LED keypad
  • Optional C3 filters and C2 filters
  • Natural cooling (single-phase or three-phase 220V 0.2–0.75kW)
  • CE requirements certified

Applications :

  • Packing Machine
  • Food Machine
  • Textile Machine
  • Centrifugal Machinery
  • Carving Machinery
  • Wire Cutting




Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

รายการสินค้า INVERTER INVT : GD10 Series

Model
Power (kW)
Power (HP)
Voltage
GD10-0R4G-S2-B
0.4
0.5
220V 1PH
GD10-0R7G-S2-B
0.75
1
220V 1PH
GD10-1R5G-S2-B
1.5
2
220V 1PH
GD10-2R2G-S2-B
2.2
3
220V 1PH
GD10-0R4G-2-B
0.4
0.5
220V 3PH
GD10-0R7G-2-B
0.75
1
220V 3PH
GD10-1R5G-2-B
1.5
2
220V 3PH
GD10-2R2G-2-B
2.2
3
220V 3PH
GD10-0R7G-4-B
0.75
1
380V 3PH
GD10-1R5G-4-B
1.5
2
380V 3PH
GD10-2R2G-4-B
2.2
3
380V 3PH

Powered by Froala Editor

Powered by Froala Editor

TYPE : INVT INVERTER GD10-Master Drive
FORM : INVT GD10
APPLICABLE MOTOR (KW) : INVERTER GD10-masterdrive
APPLICABLE MOTOR (HP) : 0.4KW-2.2KW
OUTPUT VOLTAGE : 1PH 220V. / 3PH 220V. / 3PH 380V.
GD10 Catalogue.pdf
Goodrive10 User Manual.pdf
×
