ตัวแทนจำหน่าย INVT Inverter GD10 Series
INVT GD200S INVERTER

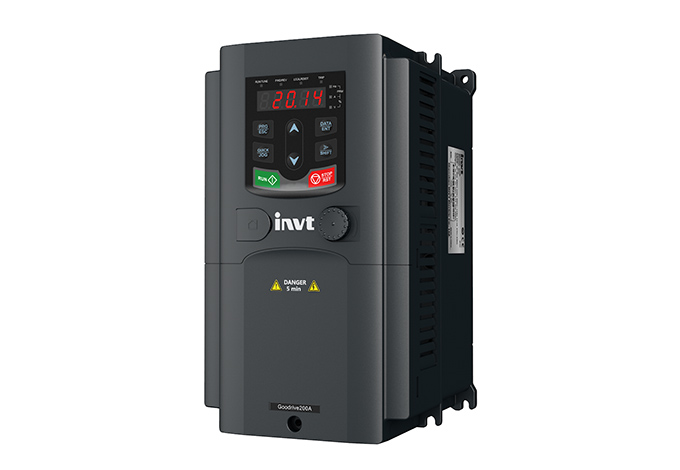

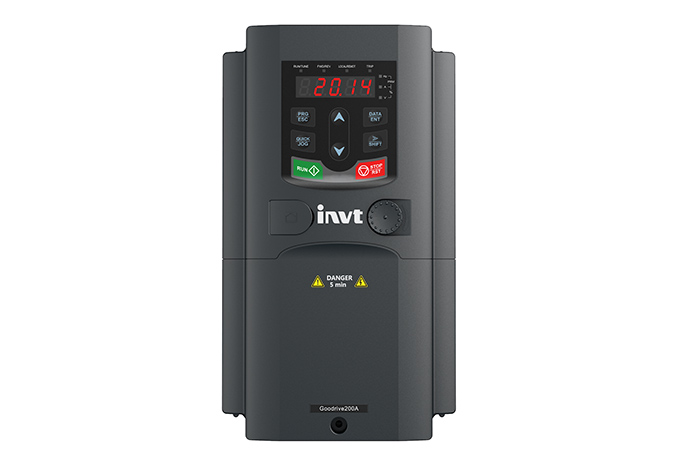

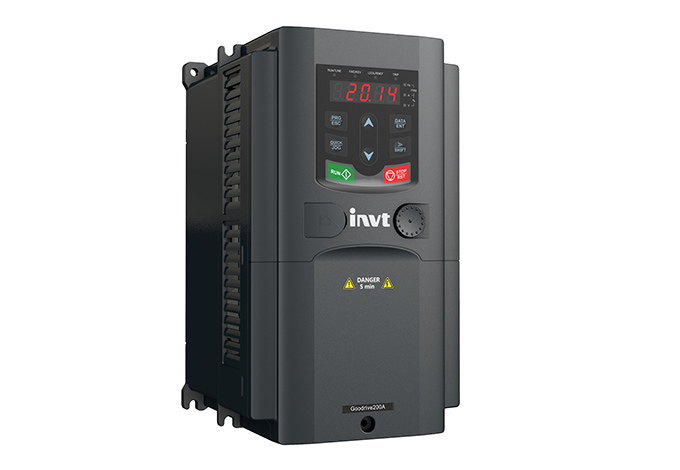

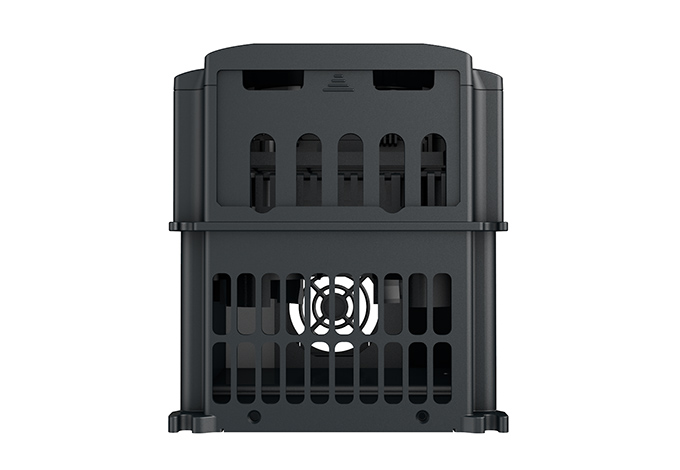

GD200A Series General Purpose Drives
INVT GD200A drives apply V/F vector control and various protections to control asynchronous motors based on DSP control system.
The air duct, hardware and software have been greatly improved for better environment adaptability,
operation and reliable quality certificated by TÜV SÜD

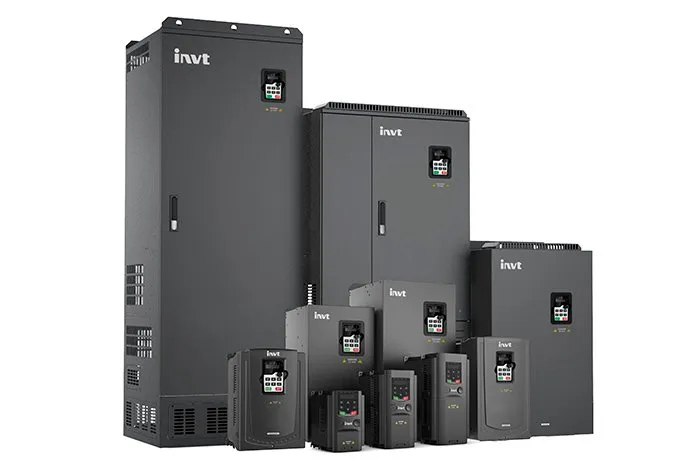

Low Voltage Drive - INVT Goodrive Series
อินเวอร์เตอร์จาก INVT ที่มีประสิทธิภาพยอดเยี่ยม ฟังก์ชันครบ ใช้งานง่าย และเชื่อถือได้
จำหน่ายพร้อมติดตั้ง / Set Parameter / ออกแบบตู้ควบคุมอินเวอร์เตอร์ จัดส่งฟรีในเขตกรุงเทพฯ และปริมณฑล
Feature :
- VF and Sensorless Vector Control
- Up to 0.5Hz/150% starting torque
- Built-in braking unit (≤30kW), Optional external braking unit (≥37kW)
- External LED keypad to copy parameters (≥18.5kW)
- Standard membrane keypad design (≤15kW), Optional LCD keypad provided
- Standard C3 filters; Optional C2 filters
- Accurate parameters auto tuning and better motor drive
- Simple water supply function
- Support G/P dual rating
- Customization services provided (like PTC)
- CE requirements certified
High Performance :
- More Accurate Motor Autotuning
- Advanced open loop vector control
- Perfect voltage and current control, reducing the fault protection times
- Multiple braking modes and instant stopping
- 0.75kW~500kW (Three Phase 400V)
Applications :
- Air Compressor
- Oil
- Warming and Water Supply
- Plastics Machine
- Mine
- Fans and Water Pumps
รายการสินค้า INVERTER INVT : GD200A Series
Model | Power (kW) | Power (HP) | Voltage |
|---|---|---|---|
GD200A-0R7G-4 | 0.75 | 1 | 380V 3PH |
GD200A-1R5G-4 | 1.5 | 2 | 380V 3PH |
GD200A-2R2G-4 | 2.2 | 3 | 380V 3PH |
GD200A-004G/5R5P-4 | 4 / 5.5 | 5.5 / 7.5 | 380V 3PH |
GD200A-5R5G/7R5P-4 | 5.5 / 7.5 | 7.5 / 10 | 380V 3PH |
GD200A-7R5G/011P-4 | 7.5 / 11 | 10 / 15 | 380V 3PH |
GD200A-011G/015P-4 | 11 / 15 | 15 / 20 | 380V 3PH |
GD200A-015G/018P-4 | 15 / 18.5 | 20 / 25 | 380V 3PH |
GD200A-018G/022P-4 | 18.5 / 22 | 25 / 30 | 380V 3PH |
GD200A-022G/030P-4 | 22 / 30 | 30 / 40 | 380V 3PH |
GD200A-030G/037P-4 | 30 / 37 | 40 / 50 | 380V 3PH |
GD200-030G/037P-4 | 30 / 37 | 40 / 50 | 380V 3PH |
GD200A-037G/045P-4 | 37 / 45 | 50 / 60 | 380V 3PH |
GD200A-045G/055P-4 | 45 / 55 | 60 / 75 | 380V 3PH |
GD200A-055G/075P-4 | 55 / 75 | 75 / 100 | 380V 3PH |
GD200A-075G/090P-4 | 75 / 90 | 100 / 120 | 380V 3PH |
GD200A-090G/110P-4 | 90 / 110 | 120 / 150 | 380V 3PH |
GD200A-110G/132P-4 | 110 / 132 | 150 / 175 | 380V 3PH |
GD200A-132G/160P-4 | 132 / 160 | 175 / 215 | 380V 3PH |
GD200A-160G/185P-4 | 160 / 185 | 215 / 250 | 380V 3PH |
GD200A-200G/220P-4 | 200 / 220 | 270 / 300 | 380V 3PH |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
| TYPE : | INVT GD200A HOT LINE : 086-331-7035 |
| FORM : | INVT GD200A-Master Drive |
| APPLICABLE MOTOR (KW) : | 0.75-500Kw |
| APPLICABLE MOTOR (HP) : | 1HP-600HP |
| OUTPUT VOLTAGE : | 380V. 3Ph |
