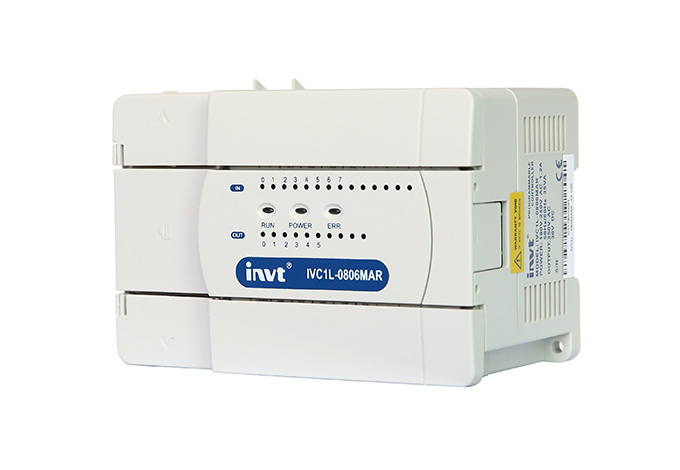

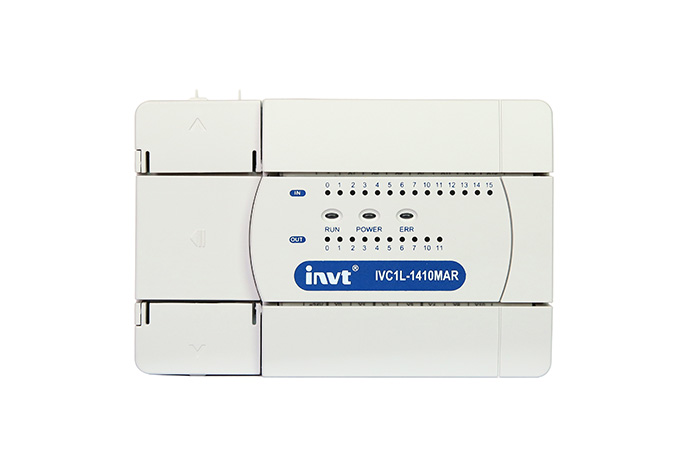

IVC1L Series Programmable Logic Controller

SKU: INVT Categories:

IVC1L Series Programmable Logic Controller :

INVT IVC1 PLC is a micro high performance PLC with compact structure and powerful function. It can be widely applied in manufacturing industries including textile and chemical fiber, machine tool, cables, food and beverages, packaging, plastic steel, construction machinery, air conditioner, elevator and printing.

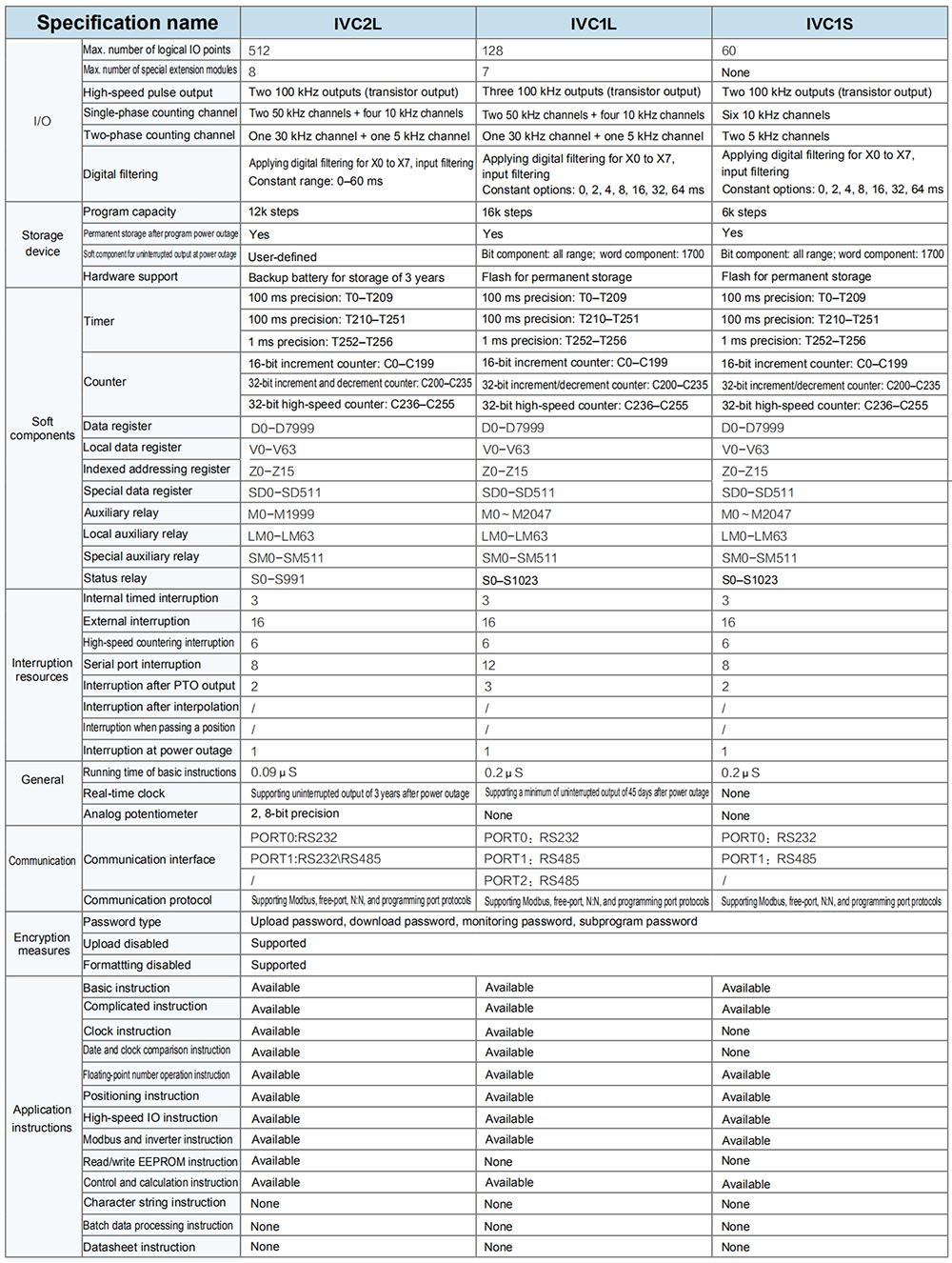

  Main features :
MAX. IO points: 128
Standard 3 isolated serial ports:1 RS232/2 RS485
Support 6 high speed pulse input
Support 3x100kHz high speed pulse output
Program capacity: 16K steps
Program power-off permanent storage
Equipped with rechargeable lithium battery, real-time clock saved for 3 years.
Max. 7 extension module
The main module is divided into two kinds: DC power supply(19-30VDC)and AC power supply(85-264VAC)

Powered by Froala Editor

TYPE : IVC1L / IVC2L / IVC1S
FORM : MADE IN CHINA
IVC Series Catalog(EN)-201807(V1.pdf
IVC1L Series Quick Start User Manual.pdf
×
