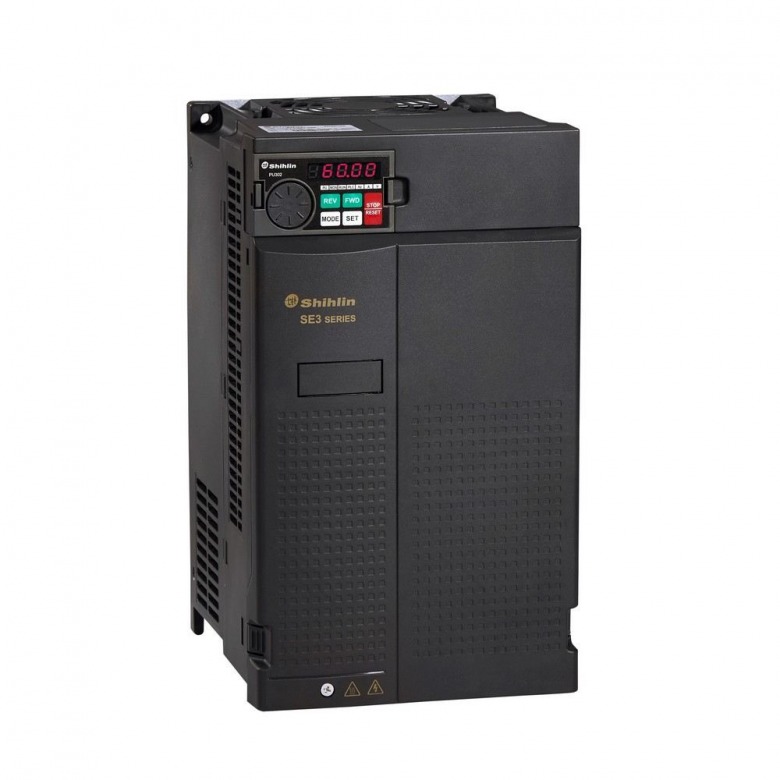

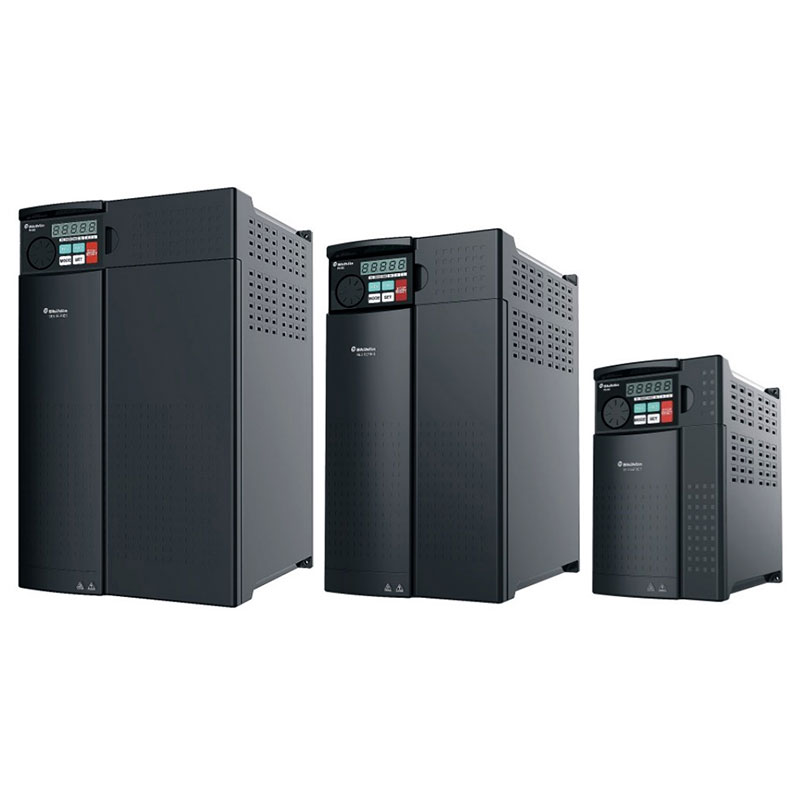

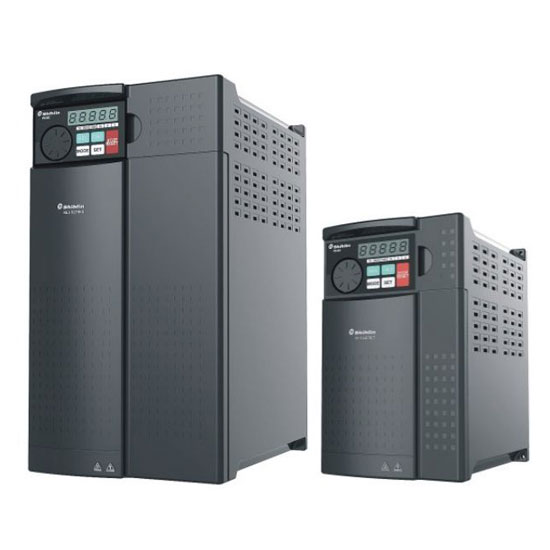

อินเวอร์เตอร์ SHIHLIN SE3

SKU: SHHLIN SE3 Categories:

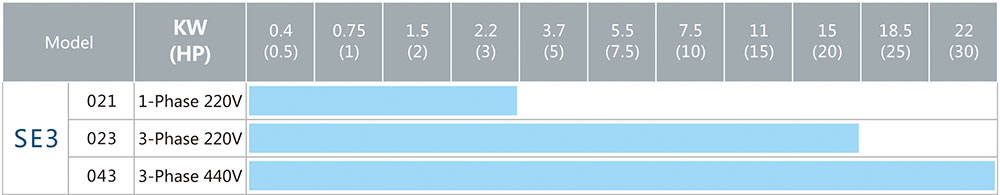

SHIHLIN INVERTER - SE3 SERIES 220V. 3PH

SE3-023-0.4K 0.4KW (0.5HP)

SE3-023-0.75K 0.75KW (1HP)

SE3-023-1.5K 1.5KW (2HP)

SE3-023-2.2K 2.2KW (3HP)

SE3-023-3.7K 3.7KW (5HP)

SE3-023-5.5K 5.5KW (7.5HP)

SE3-023-7.5K 7.5KW (10HP)

*****************************************

SHIHLIN INVERTER - SE3 SERIES 380V. 3PH

SE3-043-0.4K

SE3-043-0.75K

SE3-043-1.5K

SE3-043-2.2K

SE3-043-3.7K

SE3-043-5.5K

SE3-043-7.5K

SE3-043-11K

SE3-043-15K

SE3-043-18.5K

SE3-043-22K

**************************************

 SPECIFICATION

  • Up to 1500Hz High-Speed Frequency Output.
  • One Expansion Card Slot for Closed-loop/Communication/Relay card
  • High Accuracy For Steady Speed (< 0.02% in closed-loop).
  • Support Induction Motor (IM) and Synchronous Motor (IPM & SPM) Control.
  • Control Mode: Torque / Position / Speed
  • Built-in PLC Function.
  • Excellent Overload Endurance and Environment Protection.
  • Supports Various Communication Protocols: Modbus / Profibus / DeviceNet / CanOpen / EtherCAT


Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

TYPE : SHIHLIN INVERTER - SE3 SERIES 220V. 3PH
FORM : MADE IN TAIWA
APPLICABLE MOTOR (KW) : 0.4KW-22KW
APPLICABLE MOTOR (HP) : 0.5HP-30HP
OUTPUT VOLTAGE : 380V. 3PH
SE3Catalogue.pdf
×
