SHIHLIN SERVO - SDE SERIES

SKU: SHIHLIN SERVO Categories:

SHIHLIN SERVO - SDE SERIES :

SDE Series High Efficiency Servo

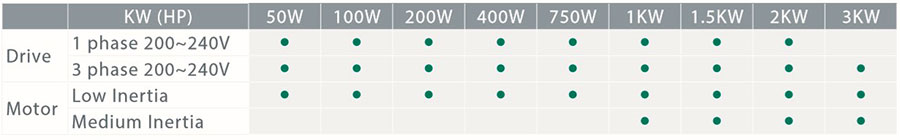

High resolution (22bit) , Capacity from 50W to 3KW.

SPECIFICATION :

  • Capacity: 50W ~ 3kW
  • Encoder Resolution: 22 Bit (4,194,304 pulse/rev)
  • Speed Response: 1.2 kHz
  • Real Time Autotuning.
  • Absolute Position System (Optional).
  • Built-in Simple PLC Function.
  • Stable Speed and Lower Torque Ripple.
  • Cable Leading Direction / Compact Size.
  • Reduced Resonance and Vibration.
  • In compliance with CE and UL international standards.


Powered by Froala Editor

TYPE : SDE Series High Efficiency Servo
FORM : MADE IN TAIWAN
APPLICABLE MOTOR (KW) : 50W-3KW
OUTPUT VOLTAGE : 1PH 220V. / 3PH 220V.
SHIHLIN SERVO_SDE_B201020.pdf
SDE_English_manual_UL_v107.pdf
×
