Download file pdf.
Cattalog and Manual
Distributor Of Toshiba Inverter and Motor = TOSHIBA
Distributor Of Shihlin Inverter and Servo Motor = SHIHLIN Electric
Distributor Of INVT Inverter and Solar Inverter = INVT
Distributor Of Leroy Somer High Efficiency Motor = LEROY SOMER
Distributor Of Hitachi Premium Efficiency Motor = HITACHI
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
![](/_content_images/download/S0037.jpg?vs=20240507164324)
ผู้จำหน่ายอินเวอร์เตอร์

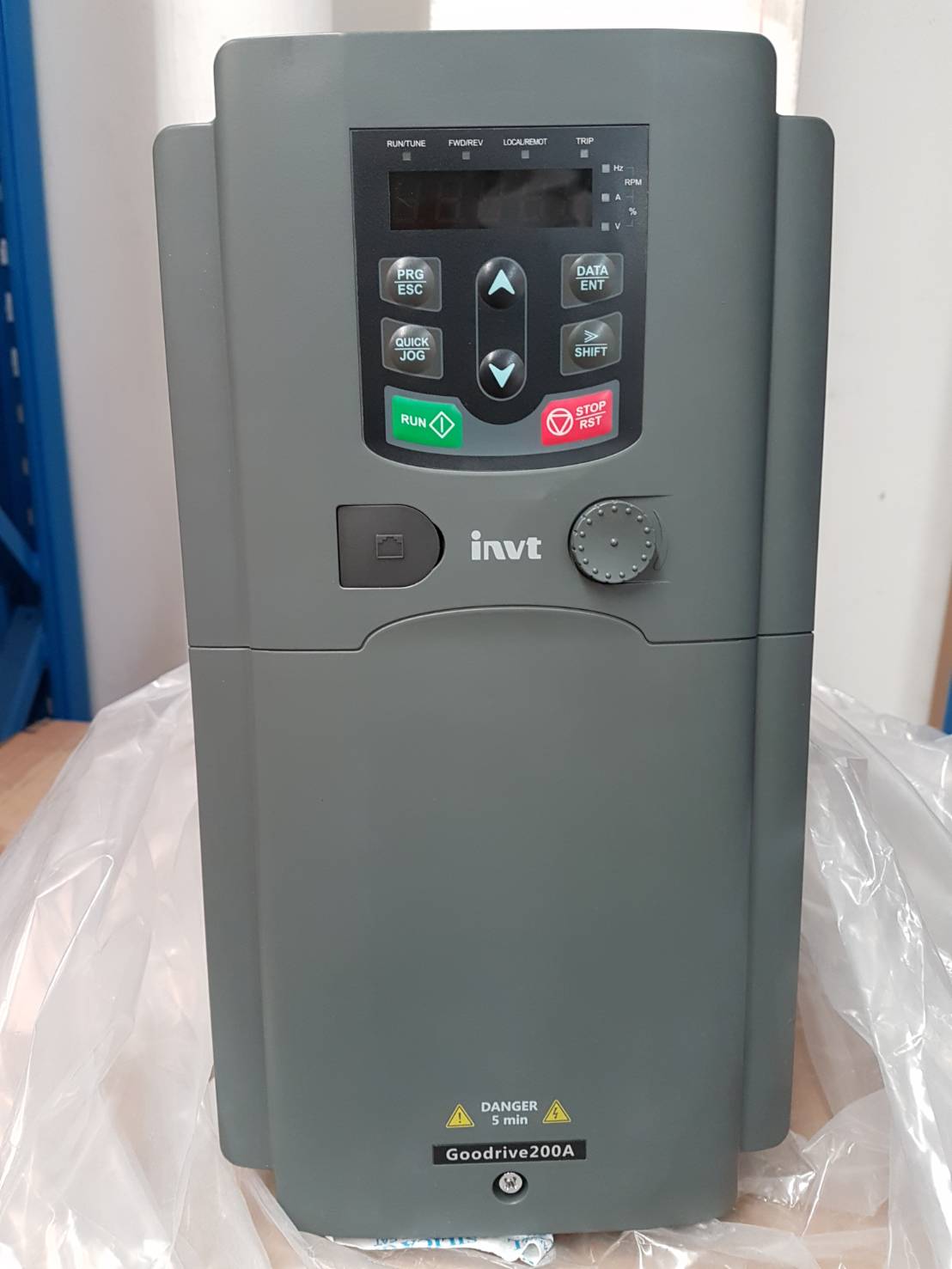

INVT Inverter
GD200A Series
General Purpose Drives
ผู้นำเข้าและจัดจำหน่ายอย่างเป็นทางการ
Authorize Distributor
อินเวอร์เตอร์ INVT
Capacity
3 Phase 380V. : 0.75 kW - 315 kW
High Performance
- More Accurate Motor Autotuning
- Advanced open loop vector control
- Perfect voltage and current control, reducing the fault protection times
- Multiple braking modes and instant stopping
- 0.75kW~500kW(Three Phase 400V)
Features
- VF and Sensorless Vector Control
- Up to 0.5Hz/150% starting torque
- Built-in braking unit (≤30kW), Optional external braking unit (≥37kW)
- External LED keypad to copy parameters(≥18.5kW),
- Standard membrane keypad design(≤15kW), Optional LCD keypad provided
- Standard C3 filters; Optional C2 filters
- Accurate parameters auto tuning and better motor drive
- Simple water supply function
- Support G/P dual rating
- Customization services provided (like PTC)
- CE requirements certified
Applications:
- Air Compressor
- Oil
- Warming and Water Supply
- Plastics Machine
- Mine
- Fans and Water Pumps
จำหน่ายอินเวอร์เตอร์ INVT GD200A Series |
INVERTER INVT : GD200A-0R7G-4 |
INVERTER INVT : GD200A-1R5G-4 |
INVERTER INVT : GD200A-2R2G-4 |
INVERTER INVT : GD200A-004G/5R5P-4 |
INVERTER INVT : GD200A-5R5G/7R5P-4 |
INVERTER INVT : GD200A-7R5G/011P-4 |
INVERTER INVT : GD200A-011G/015P-4 |
INVERTER INVT : GD200A-015G/018P-4 |
INVERTER INVT : GD200A-018G/022P-4 |
INVERTER INVT : GD200A-022G/030P-4 |
INVERTER INVT : GD200-030G/037P-4 |
INVERTER INVT : GD200A-037G/045P-4 |
INVERTER INVT : GD200A-045G/055P-4 |
INVERTER INVT : GD200A-055G/075P-4 |
INVERTER INVT : GD200A-075G/090P-4 |
INVERTER INVT : GD200A-090G/110P-4 |
INVERTER INVT : GD200A-110G/132P-4 |
INVERTER INVT : GD200A-132G/160P-4 |
INVERTER INVT : GD200A-160G/185P-4 |
INVERTER INVT : GD200A-200G/220P-4 |
INVERTER INVT : GD200A-030G/037P-4 |
GD200A Keypad |
Powered by Froala Editor
Cattalog INVT GD200A
Download
![](/_content_images/download/S0038.jpg?vs=20240507163404)
ตารางพารามิเตอร์ที่ควรรู้
| ชื่อ | รายละเอียดพารามิเตอร์ | ค่าที่ตั้งจากโรงงาน |
P00.001 | การเลือกใช้คำสั่ง Run | 0 : คือการสั่งรันจากปุ่มกด Keyapd 1 : การสั่งรันจาก Terminal 2 : การสั่งรันจากพอร์ทสื่อสาร RS485 | 0 |
P00.03 | ค่าความถี่สูงสุด | สามารถตั้งค่าความถี่การใช้งานสูงสุดของ inverterมีย่านที่สามารถตั้งค่าได้คือ ค่าจาก parameter P00.04-400Hz. | 50.00Hz. |
P00.04 | การจำกัดค่าความถี่สูงสุด | เป็นการจำกัดค่าความพี่ที่ออกมาใช้งานของ Inverter มีย่านที่สามารถตั้งได้คือค่าจาก parameter P00.05-P00.03 | 50.00Hz. |
P00.05 | การจำกัดความถี่ต่ำสุด | เป็นการจำกัดค่าความถี่ที่เริ่มต้นออกมาใช้งานของ Inverter มีย่านที่สามารถตั้งได้คือ คาจาก Parameter 0.00Hz.-P00.04 | 0.00Hz. |
Powered by Froala Editor
Manual GD200A
Download
![](/_content_images/download/S0014.jpg?vs=20240313153855)

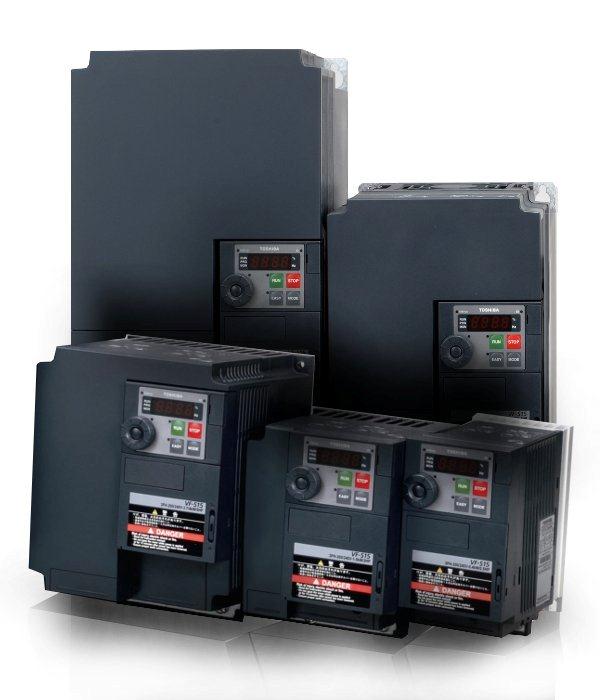

Cattalog Toshiba Inverter : VFS15
Download
